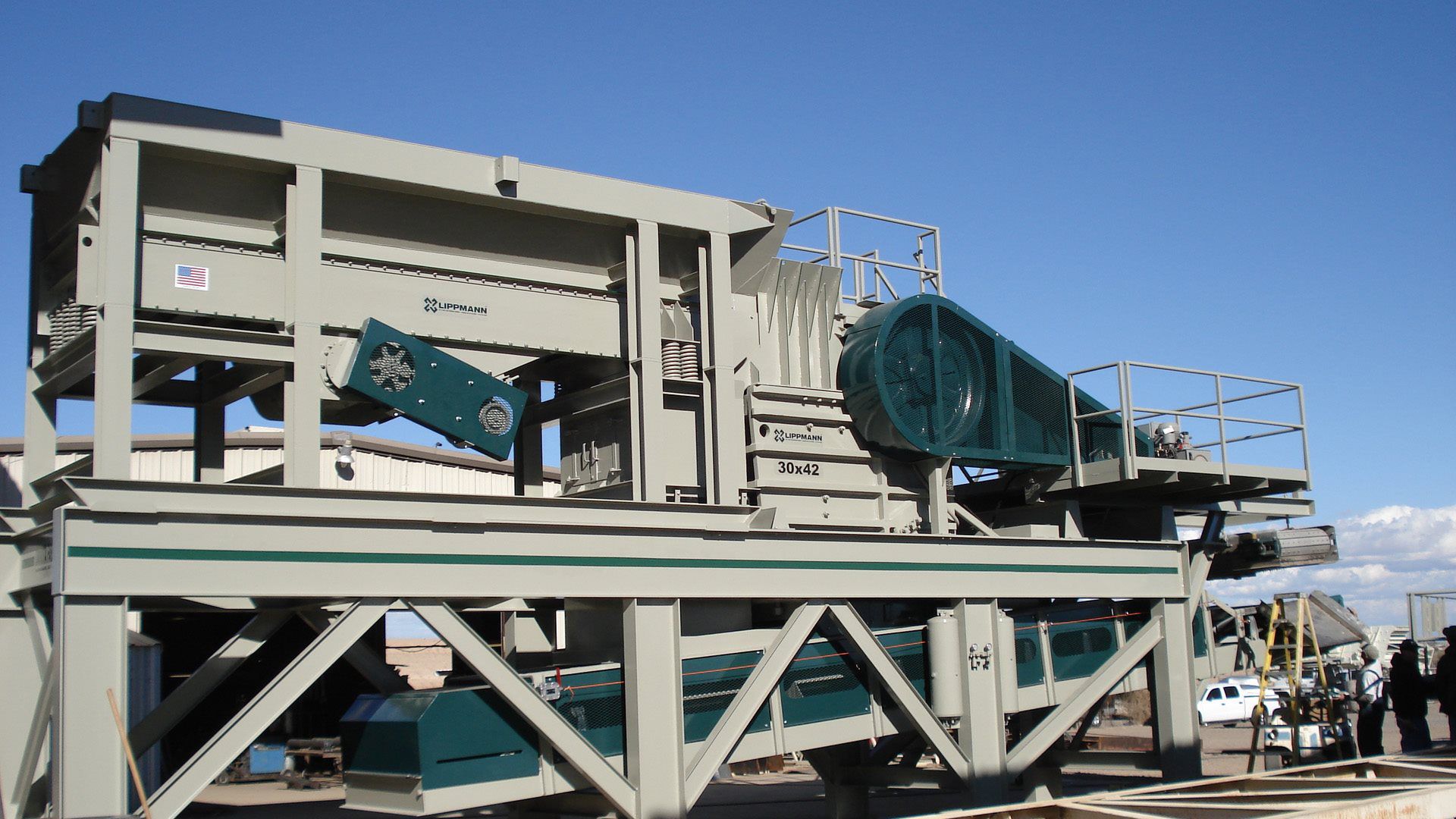

jaw crushers
Our jaw crushing structures and chassis are built to support any manufacturers designed machine. The portable, stationary, and modular type structures range in varying sizes to accommodate all model sizes of jaw crushers.
Our heavy duty structures are mainly constructed of structural
I-beam steel, and are robust in design to sustain any conditions of their application.
Our heavy duty structures are mainly constructed of structural
I-beam steel, and are robust in design to sustain any conditions of their application.
I-beam steel, and are robust in design to sustain any conditions of their application.

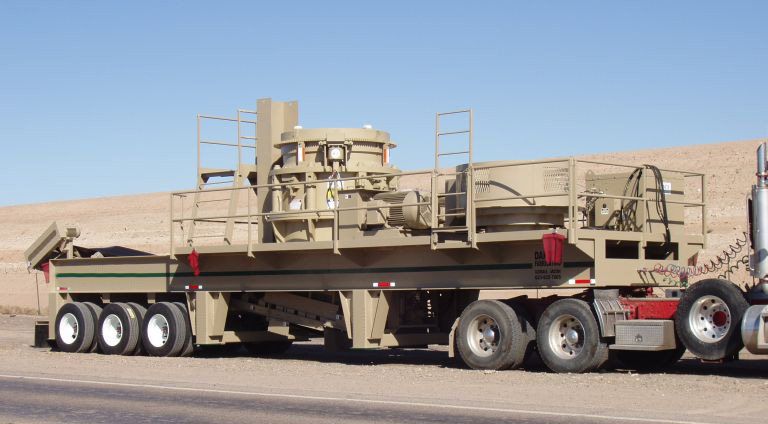

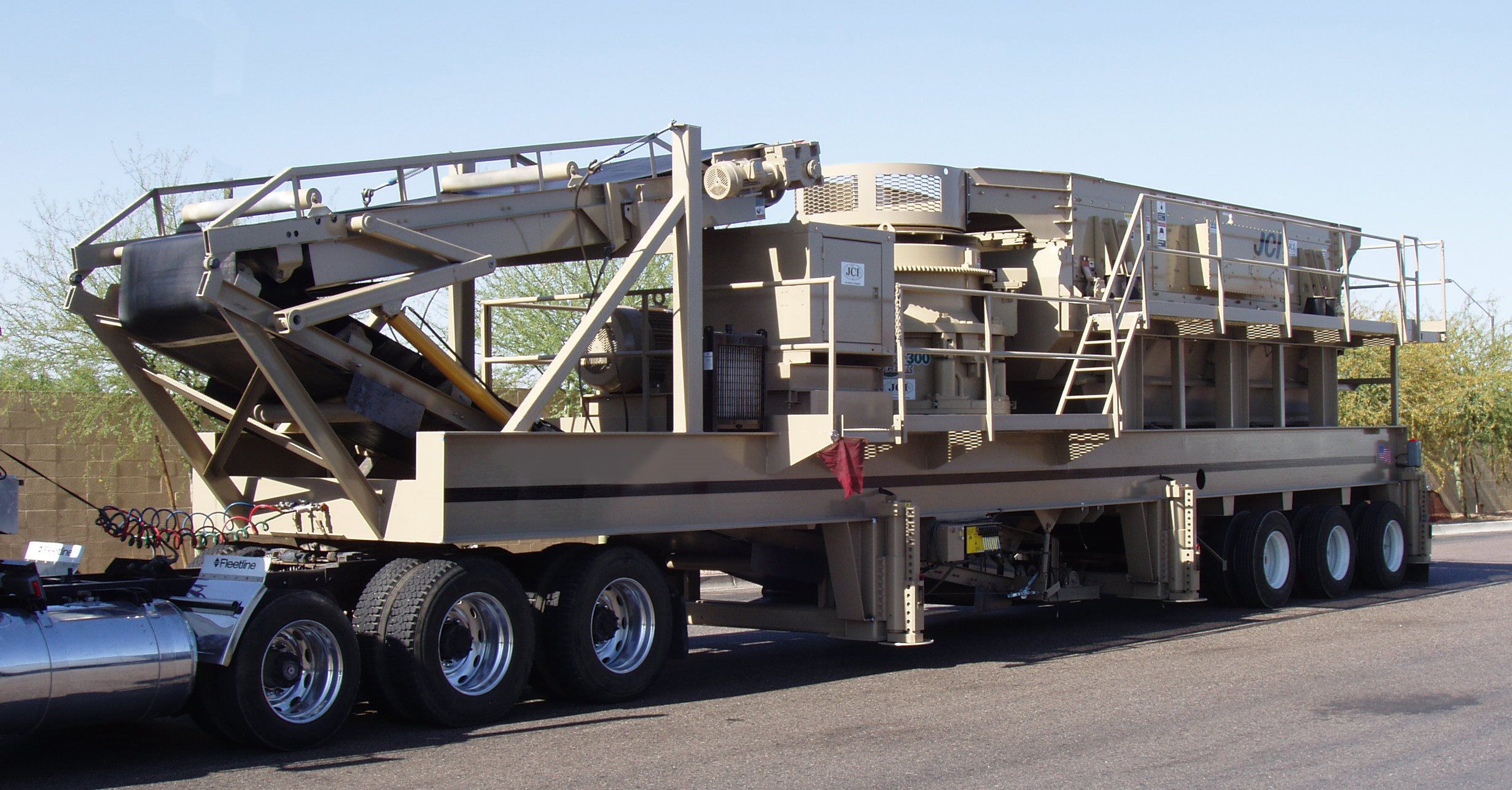

cone crushers
Our heavy duty I-Beam constructed chassis is designed to meet the rugged requirements of both the sand & gravel and mining industries.
This chassis is highly customizable to meet our customers needs and choice of cone manufacturer. We use heavy duty Triple Track Hub Piloted Axles, 11.00 x 22.5 bias ply tires, heavy duty brakes and a Hutch Leaf Spring Suspension. Our chassis features a raised viewing platform with catwalks and railings on all four sides. We equip our chassis with tail lights/mud flaps and hydraulic legs, power panels and custom feed baskets are available.
Optional Equipment: Toshiba, Weg, or U.S Motors 400 hp 1800 RPM MotorPower Packer Stiff Legs (12 Volt) or Honda PowerOverflow Basket & Spout
Optional Equipment:
Toshiba, Weg, or U.S Motors 400 hp 1800 RPM Motor
Power Packer Stiff Legs (12 Volt) or Honda Power
Overflow Basket & Spout

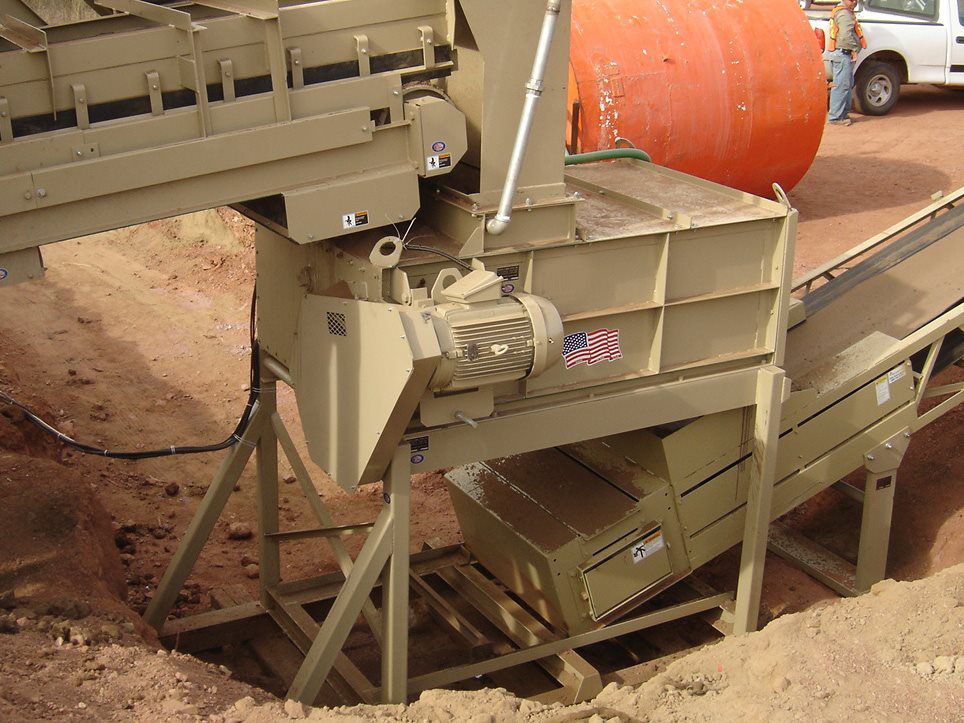

pug mill MIXER

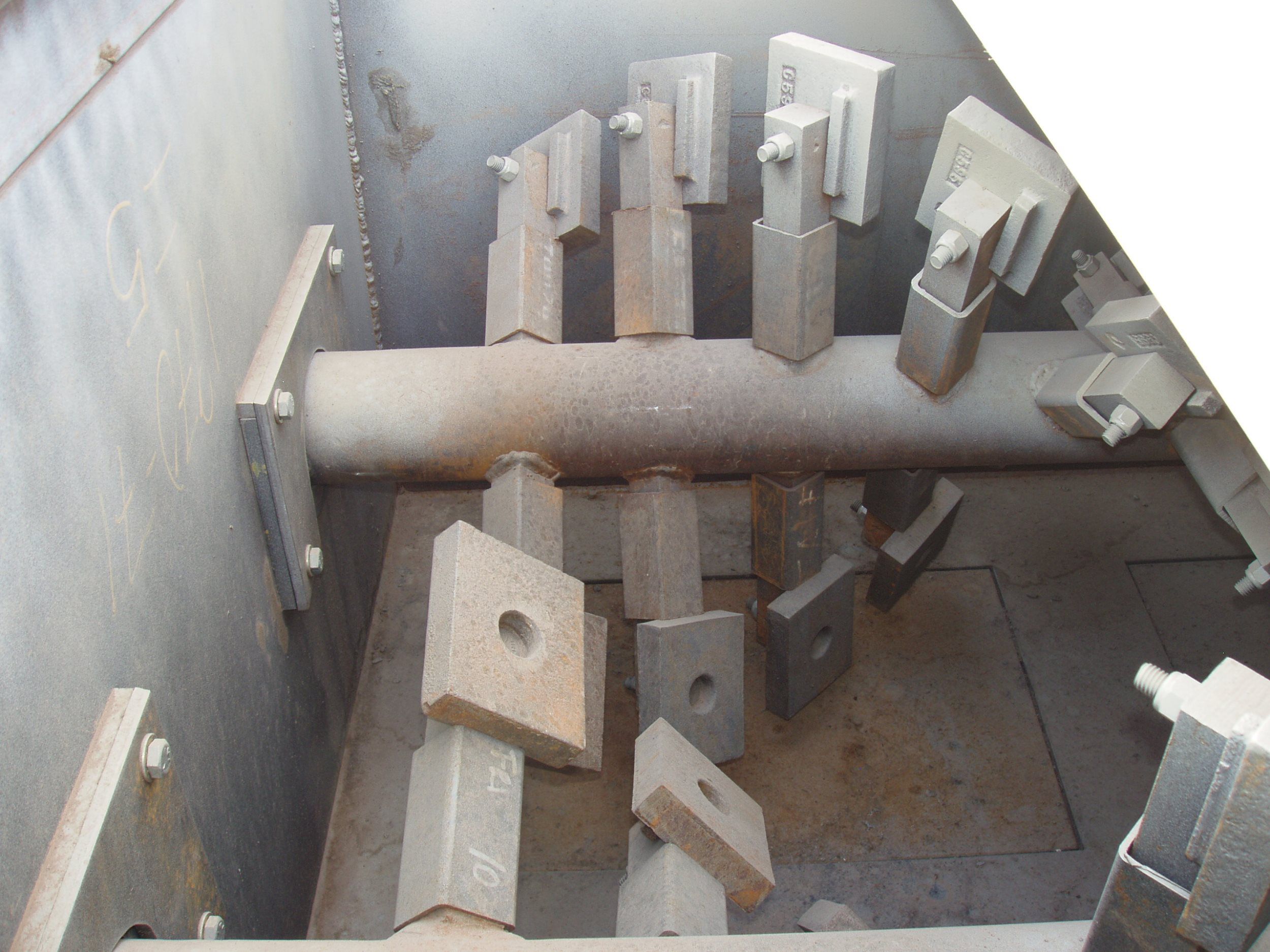

The DEMI Pugmill or “Pug Mill” is designed with Twin Spiral Mixer Shafts that provide superior material blending and high production rates. The Spiral Mixer Shafts incorporate AR 500 Paddle tips, that are rotatable 180° to equalize wear.
Our Pugmills Anti-Surging characteristics result in properly blended material moving through the unit, efficiently and effectively, increasing production. Dakota’s Pugmill is a tough and time tested design, built to be a dependable mixer that achieves a consistent product at a low operating cost. Our pugmills can be used in a variety of job applications in the construction and other industries. From stabilized base mixing for roads, lime addition at asphalt plants, cold emulsified asphalt mixing (Cold Mix) to Roller Compacted Concrete (RCC) and Flowable backfill.
Standard features: Two spiral design mixer shaftsAR 500 Rotatable Paddle tipsWear TubesElectric Motor, 3 Phase / 60 cycle 230/460 volt 1760 RPMTEFC (less starter, controls and wiring)Gear Case Enclosed Final Chain DriveConveyor Feed Chute
Custom Options: Skid Support StructurePortable Chassis built to customer specifications
Standard features:
Two spiral design mixer shafts
AR 500 Rotatable Paddle tips
Wear Tubes
Electric Motor, 3 Phase / 60 cycle 230/460 volt 1760 RPM
TEFC (less starter, controls and wiring)
Gear Case Enclosed Final Chain Drive
Conveyor Feed Chute
Custom Options:
Skid Support Structure
Portable Chassis built to customer specifications

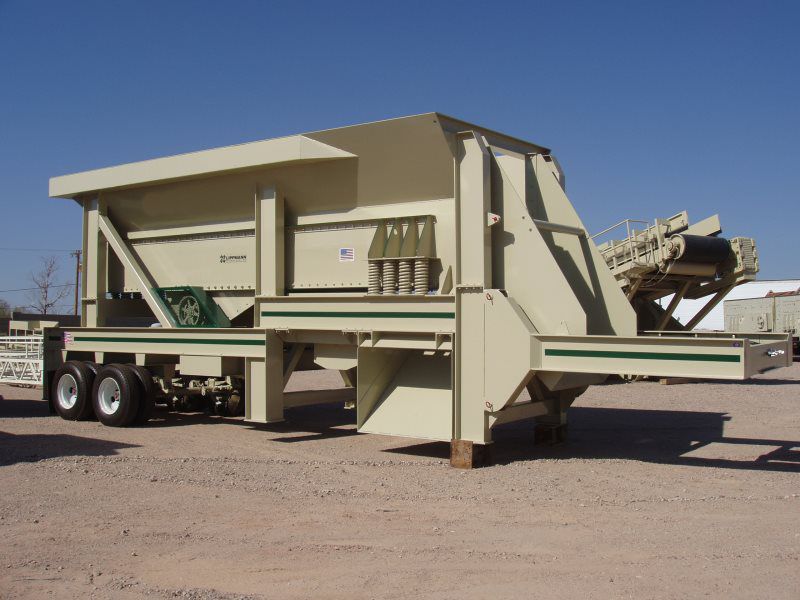

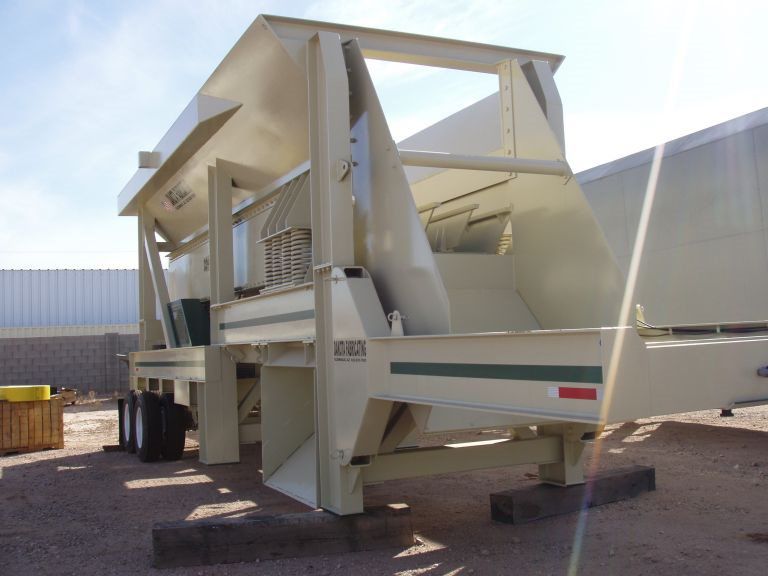

rip rap PLANT
The Portable Rip Rap Plant is a Heavy duty, high production material scalping unit that is simplistically designed to separate various sizes of material from 0 to 48”.
DEMI offers a larger screening area and up to 30% more capacity than many other manufacturers, to prevent rocks from stacking up. This rip rap design allows the space necessary to stratify the material in order to screen it efficiently and operate at maximum capacity. Smaller rocks separate easily, so you can run at higher speeds to produce the 4″-12″ rip rap you need.
Standard Features: Heavy duty I-Beam Construction, Heavy Plate Hopper Construction (18 yards struck)Designed to accommodate 24′-26′ vibrating grizzly feeder10‘ wide Axle Stance 11:00-22.5 tiresBrakes, Lights, and Flaps
Custom Options: Power Control PanelRear Load-Out Hopper (1 piece design)42”x20’ Under Conveyor (first step)Variable Speed Controller
